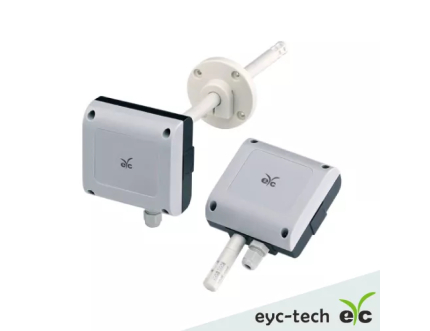

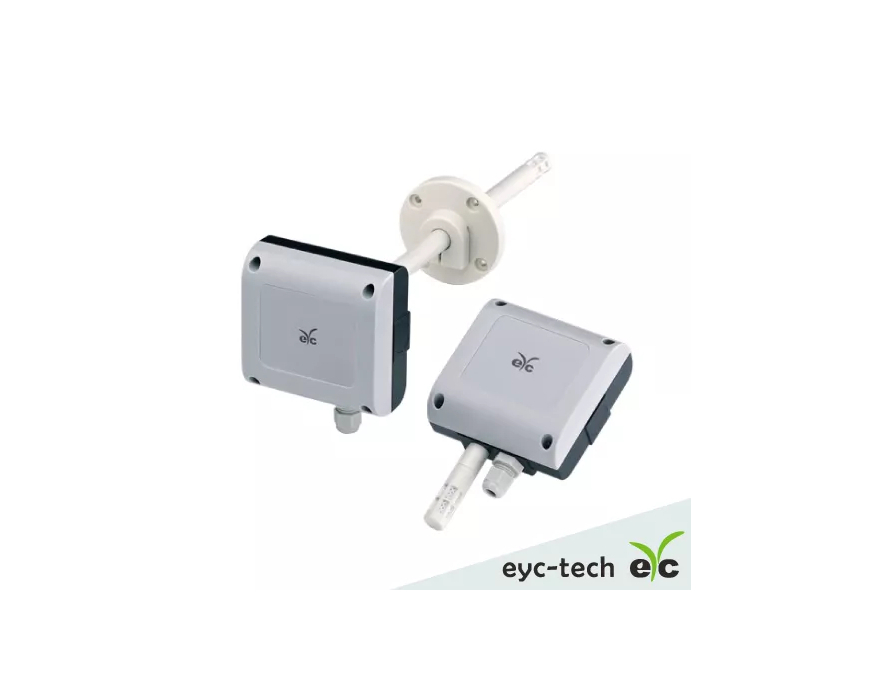

EYC THS130/140 Temperature & Humidity Transmitter for Indoor / Duct type
Construction:
THS130/140 Series Temperature & Humidity Transmitter, providing good accuracy, simple structure, stable performance for HVAC air conditioning environment monitoring. Easy installation, suitable is used extensively in environmental engineering projects, as facility and factory maintenance.
Technical Data:
Sensor type |
MEMS sensor |
Temperature |
0 ... 50°C |
Humidity |
0 ... 100%(Non-condensing) |
Output |
4 ... 20 mA / 0 ... 10 V |
Signal connection |
2-wire / 3-wire |
Warm-up time |
＜2 min；Stable time 20 min |
Response time |
t63(15°C ... 45°C / 33 ... 75%RH)≦ 10 sec |
Sampling time |
About 3 sec |
Temperature influence |
Max.-0.15%RH/°C(0°C ... 80°C) |
Load resistance |
Current＜250 Ω；Voltage≧10 KΩ |
Accuracy (Temperature) |
±0.5°C @25°C |
Accuracy (Humidity) |
±3%RH(30 ... 80%RH)@25°C |
Power supply |
DC 15 ... 35 V / DC 19 ... 35 V & AC 24 V±10% |
Current consumption |
DC : Max. 80 mA / AC : Max. 150 mA |
Electrical connection |
2-wire : 3P connector |
Medium |
Air |
Operating Temp. |
0 ... + 50°C |
Operating Humid. |
0 ... 100%RH(Non-condensing) |
Storage Temp. |
-20 ... +60°C |
Installation |
Indoor : Wall mount |
IP rating |
IP54 |
Electrical protection |
■ Reverse polarity |
Certification |
CE |
Housing |
PC(PC-110)(UL94V-2) |
Weight |
THS130 : 113 g |
