Ellipse® AS Annular Steam Flow Meter

Constructions:

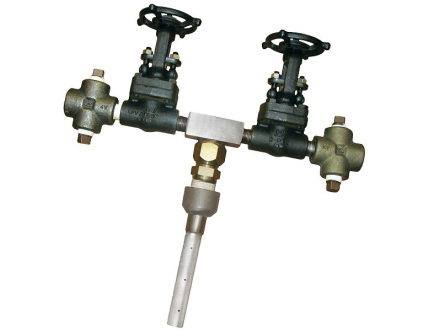

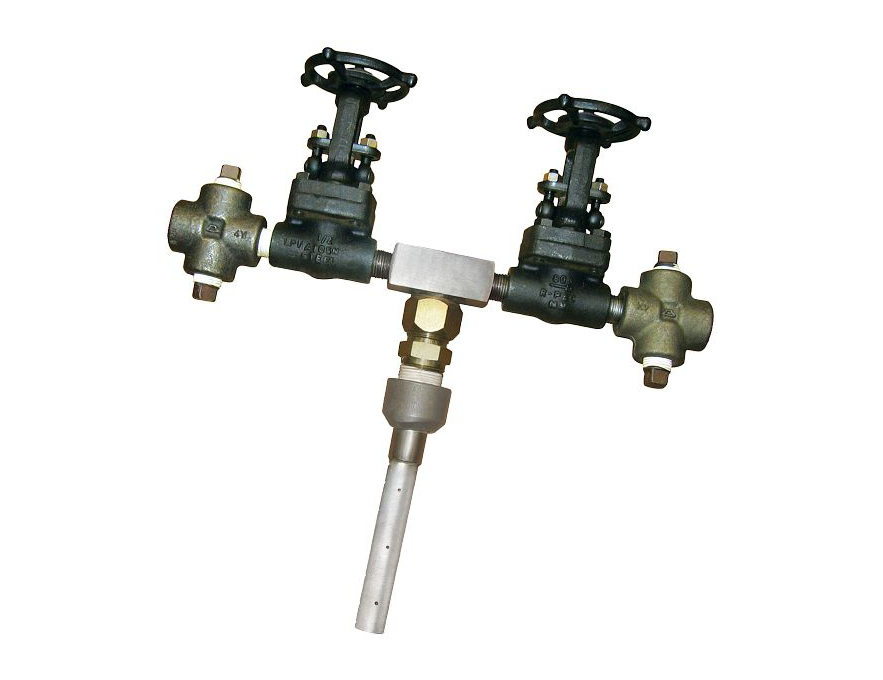

The Ellipse^® Model AS annular flow device is a steam flow meter designed to produce a differential pressure that is proportional to flow. Its innovative elliptical shape provides the lowest permanent pressure loss in the industry. The Ellipse flow meter is designed with a series of ports facing the upstream velocity pressures and flow sensing ports strategically located ahead of the trailing edge flow separation.

Features

Steam flow meter designed to produce a differential pressure that is proportional to flow.

• Elliptical design outperforms traditional devices
• Turndown Ratio: 17:1; no vacuum effects
• No moving parts equals long, trouble-free service life
• True static pressure measurement rather than a calculated value
• Overcomes loss of accuracy caused by fluid separation at the sensor body
