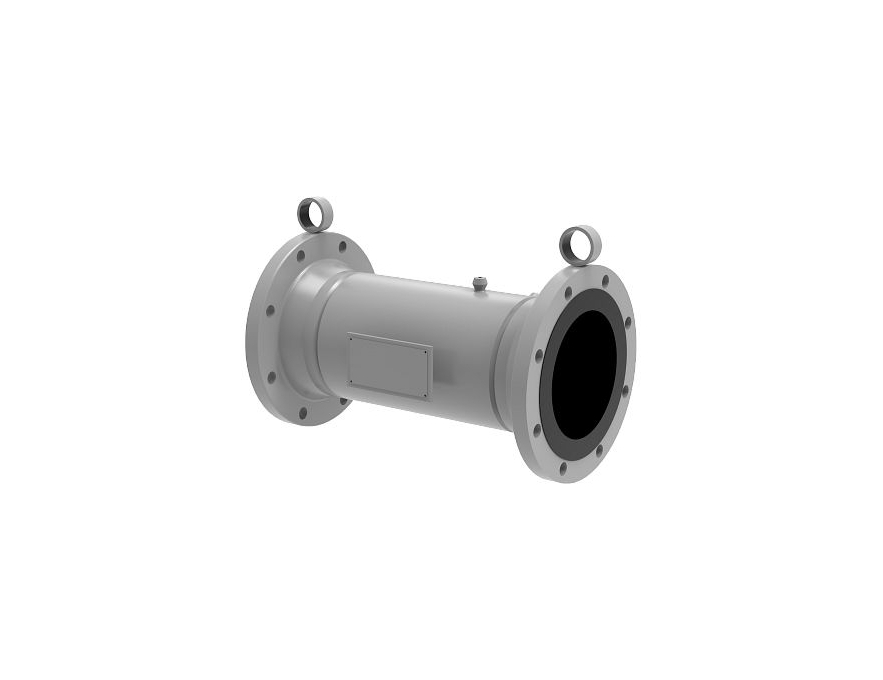

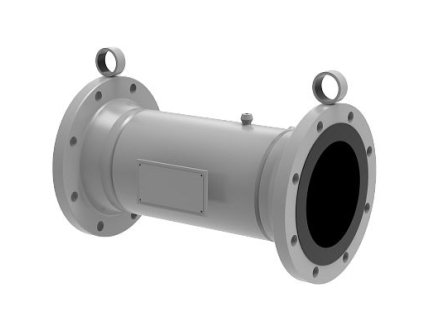

Model LPL Venturi Low Pressure Loss Flow Meter
Download (Waste Water)
Download (Drink Water)
Constructions:
The Venturi Model LPL (Low Pressure Loss Venturi Design) is a Venturi Nozzle design differential pressure flow device. The Low-Loss Design with over 35 years of proven field performance in a wide variety of applications provides reduced operating costs inherent with this design. Low installation costs due to short laying length and the wide range of sizes and material of construction, make the LPL the right choice for many flow applications.
Features
Provides longevity, reliability and long term performance.
- Flow is restricted for the shortest period of time
- Lowest pressure loss (3% of DP maximum)
- Minimal straight pipe distance requirements
- Mounts in any position
- Low permanent pressure-loss design
- Turndown ratio of 10:1, Repeatability of ± 0.1%
