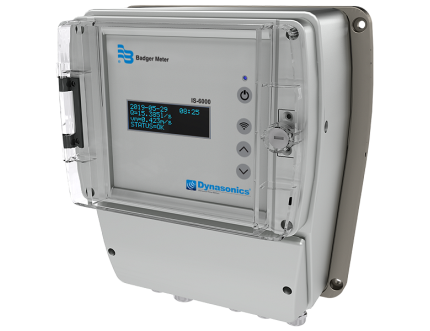

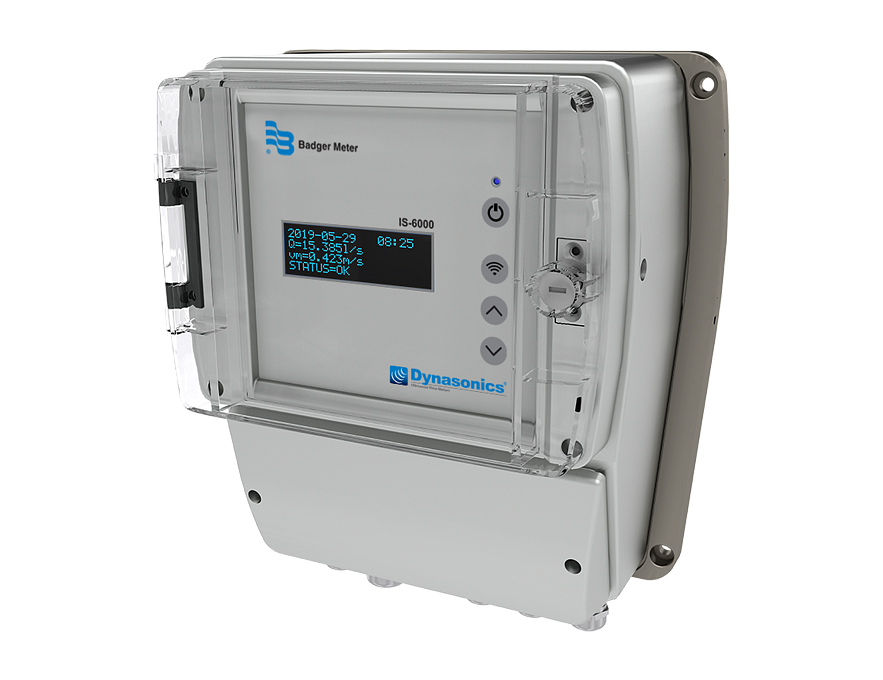

Badger IS-6000 Non-Contact Radar Flow Meter
Construction:
By directly measuring the velocity at the surface, the IS-6000 flow meter provides a better flow reading for open channels than by measuring level alone.
- Exceptional Performance. Data logs all measurements and up to four external instrumentation devices.
- Connectivity Choices. Remotely program over WiFi or Ethernet LAN and share data over a variety of network options.
- Application Flexibility. Well suited for flow measurement wastewater treatment influent and effluent, storm, and sanitary sewer systems.
-
Size Range: 0.20...10 m
-
Temperature Range: -40...85 °C
-
Pressure Range: Up to 2 Bar
-
Interface: Modbus RTU, Modbus TCP Ethernet; WiFi remote programming
-
Power Supply: 100…240V AC or 10…36V DC
